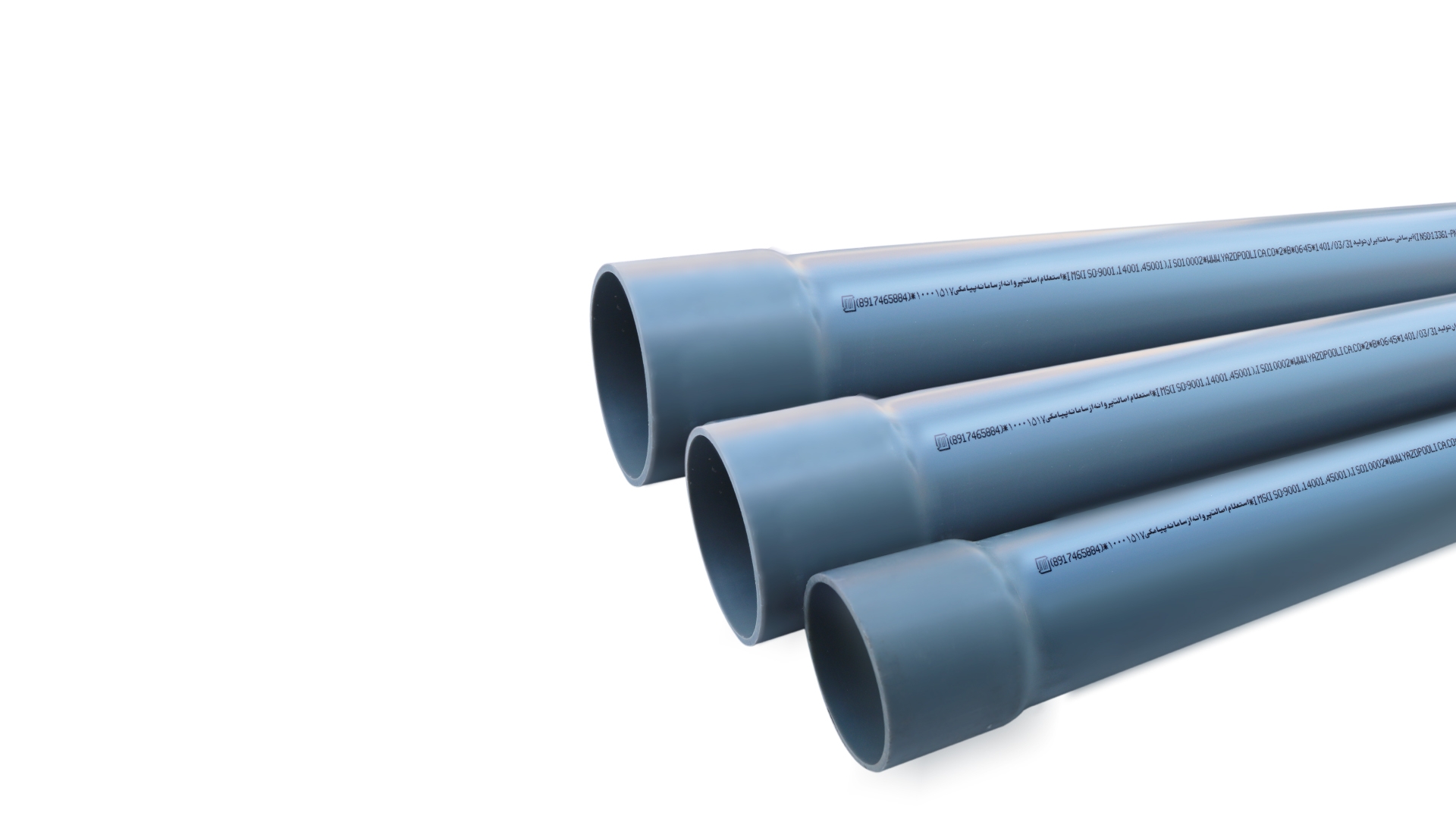

6 meter PVC-U Water Supply Pipe under Pressure with One End Coupling

Product Name	Specifications
Water Supply Pipe under Pressure PVC-U	6 meter One Head Coupling

Standard

Iran	Europe
ISIRI 13361-2	ISO 1452-2

Diameter (mm)	Thickness (mm)	SDR	S	PN
20	1.5	13.6	6.3	16
20	1.9	11	5	20
25	1.5	17	8	12.5
25	1.9	13.6	6.3	16
25	2.3	11	5	20
32	1.5	26	12.5	80
32	1.6	21	10	10
32	1.9	17	8	12.5
32	2.4	13.6	6.3	16
32	2.9	11	5	20
40	1.5	33	16	6
40	1.6	26	12.5	8
40	1.9	21	10	10
40	2.4	17	8	12.5
40	3	13.6	6.3	16
40	3.7	11	5	20
50	1.6	33	16	6
50	2	26	12.5	8
50	2.4	21	10	10
50	3	17	8	12.5
50	3.7	13.6	6.3	16
50	4.6	11	5	20
63	2	33	16	6
63	2.5	26	12.5	8
63	3	21	10	10
63	3.8	17	8	12.5
63	4.7	13.6	6.3	16
63	5.8	11	5	20
75	2.3	33	16	6
75	2.9	26	12.5	8
75	3.6	21	10	10
75	4.5	17	8	12.5
75	5.6	13.6	6.3	16
75	6.8	11	5	20
90	2.8	33	16	6
90	3.5	26	12.5	8
90	4.3	21	10	10
90	5.4	17	8	12.5
90	6.7	13.6	6.3	16
90	8	11	5	20
110	2.7	41	20	6
110	3.4	33	16	8
110	4.2	26	12.5	10
110	5.3	21	10	12.5
110	6.6	17	8	16
110	8.1	13.6	6.3	20
110	10	11	5	25
125	3.1	41	20	6
125	3.9	33	16	8
125	4.8	26	12.5	10
125	6	21	10	12.5
125	7.4	17	8	16
125	9.2	13.6	6.3	20
125	11.4	11	5	25
140	3.5	41	20	6
140	4.3	33	16	8
140	5.4	26	12.5	10
140	6.7	21	10	12.5
140	8.3	21	8	16
140	10.3	13.6	6.3	20
140	12.7	11	5	25
160	4	41	20	6
160	4.9	33	16	8
160	6.2	26	12.5	10
160	7.7	21	10	12.5
160	9.5	17	8	16
160	11.8	12.5	6.3	20
160	14.6	11	5	25
180	4.4	41	20	6
180	5.5	33	16	8
180	6.9	26	12.5	10
180	8.6	21	10	12.5
180	10.7	17	8	16
180	13.3	13.6	6.3	20
180	16.4	11	5	25
200	4.9	41	20	6
200	6.2	33	16	8
200	7.7	26	12.5	10
200	9.6	21	10	12.5
200	11.9	17	8	16
200	14.7	13.6	6.3	20
200	18.2	11	5	25
225	5.5	41	20	6
225	6.9	33	16	8
225	8.6	26	12.5	10
225	10.8	21	‍10	12.5
225	13.4	17	8	16
225	16.6	13.6	6.3	20
250	6.2	41	20	6
250	7.7	33	16	8
250	9.6	26	12.5	10
250	11.9	21	10	12.5
250	14.8	17	8	16
250	18.4	13.6	6.3	20
280	6.9	41	20	6
280	8.6	33	16	8
280	10.7	26	12.5	10
280	13.4	21	10	12.5
280	16.6	17	8	16
315	7.7	41	20	6
315	9.7	33	16	8
315	12.1	26	12.5	10
315	15	21	10	12.5
315	18.7	17	8	16
315	23.2	13.6	6.3	20
355	8.7	41	20	6
355	10.9	33	16	8
355	13.6	26	12.5	10
355	16.9	21	10	12.5
355	21.1	17	8	16
355	26.1	13.6	6.3	20
400	9.8	41	20	6
400	12.3	33	16	8
400	15.3	26	12.5	10
400	19.1	21	10	12.5
400	23.7	17	8	16
400	29.4	13.6	6.3	20
450	11	41	20	6
450	13.8	33	16	8
450	17.2	26	12.5	10
450	21.5	21	10	12.5
450	26.7	17	8	16
450	33.1	13.6	6.3	20
500	12.3	41	20	6
500	15.3	33	16	8
500	19.1	26	12.5	10
500	23.9	21	10	12.5
500	29.7	17	8	16
500	36.8	13.6	6.3	20
560	13.7	41	20	6
560	17.2	33	16	8
560	21.4	26	12.5	10
560	26.7	21	10	12.5
630	15.4	41	20	6
630	19.3	33	16	8
630	24.1	26	12.5	10
630	30	21	10	12.5
